How to generate a utility report?

Check that the synthetic data preserve the information of the real data

Assume that the synthetic data is already generated

Based on the Wisconsin Breast Cancer Dataset

# Standard library
import sys
import tempfile
from pathlib import Path

sys.path.append("..")

# 3rd party packages
import matplotlib.pyplot as plt
import pandas as pd

# Local packages
import clover.utils.draw as draw
from clover.metrics.utility.report import UtilityReport

Load the real and synthetic WBCD datasets

PROJECT_PATH = Path(".")
OUTPUT_PATH = PROJECT_PATH / "output"

df_real = {}
df_real["train"] = pd.read_csv("data/breast_cancer_wisconsin_train.csv")
df_real["test"] = pd.read_csv("data/breast_cancer_wisconsin_test.csv")
df_real["train"].shape

(359, 10)

Choose the synthetic dataset

df_synth = {}  # generated by Synthpop ordered here
df_synth["train"] = pd.read_csv("data/2026-01-21_Synthpop_359samples.csv")
df_synth["test"] = pd.read_csv("data/2026-01-21_Synthpop_90samples.csv")
df_synth["test"].shape

(90, 10)

Configure the metadata dictionary

The continuous and categorical variables need to be specified, as well as the variable to predict for the future learning task

metadata = {
    "continuous": [
        "Clump_Thickness",
        "Uniformity_of_Cell_Size",
        "Uniformity_of_Cell_Shape",
        "Marginal_Adhesion",
        "Single_Epithelial_Cell_Size",
        "Bland_Chromatin",
        "Normal_Nucleoli",
        "Mitoses",
        "Bare_Nuclei",
    ],
    "categorical": ["Class"],
    "variable_to_predict": "Class",
}

Compare the distributions

fig, axes = plt.subplots(  # manually set number of cols/rows
    nrows=4, ncols=3, squeeze=0, figsize=(18, 16), layout="constrained"
)
axes = axes.reshape(-1)
draw.kde_plot_hue_plot_per_col(
    df=df_real["test"],
    df_nested=df_synth["test"],
    original_name="Real",
    nested_name="Synthetic",
    hue_name="Data",
    title="Kernel density estimate",
    axes=axes,
)

Generate the utility report

Some metrics will not be computed since the only categorical variable is the variable to predict

1. First option: Create and compute the full utility report - it takes some time

report = UtilityReport(
    dataset_name="Wisconsin Breast Cancer Dataset",
    df_real=df_real,
    df_synthetic=df_synth,
    metadata=metadata,
    figsize=(8, 6),  # will be automatically adjusted for larger or longer figures
    random_state=0,  # for reproducibility purposes
    report_filepath=None,  # load a computed report if available
    metrics=None,  # list of the metrics to compute. If not specified, all the metrics are computed.
    cross_learning=True,  # not parallelized yet, can be set to False if the computation is too slow. See the use_gpu flag to accelerate the computation
    num_repeat=1,  # for the metrics relying on predictions to account for randomness
    num_kfolds=3,  # the number of folds to tune the hyperparameters for the metrics relying on predictors
    num_optuna_trials=20,  # the number of trials of the optimization process for tuning hyperparameters for the metrics relying on predictors
    use_gpu=True,  # run the learning tasks on the GPU
    alpha=0.05,  # for the pairwise chi-square metric
)

report.compute()

/data8/install/anaconda3/envs/synthetic_data_p3.10/lib/python3.10/site-packages/xgboost/core.py:158: UserWarning: [20:47:53] WARNING: /workspace/src/common/error_msg.cc:58: Falling back to prediction using DMatrix due to mismatched devices. This might lead to higher memory usage and slower performance. XGBoost is running on: cuda:0, while the input data is on: cpu.
Potential solutions:
- Use a data structure that matches the device ordinal in the booster.
- Set the device for booster before call to inplace_predict.

This warning will only be shown once.

  warnings.warn(smsg, UserWarning)

Get the summary report as a pandas dataframe

report.specification()

----- Wisconsin Breast Cancer Dataset -----
Contains:
    - 359 instances in the train set,
    - 90 instances in the test set,
    - 10 variables, 9 continuous and 1 categorical.

df_summary = report.summary()

by = ["name", "objective", "min", "max"]
df_summary.groupby(by, group_keys=True).apply(
    lambda x: x.reset_index(drop=True), include_groups=False
)

/tmp/ipykernel_623728/717339571.py:2: DeprecationWarning: DataFrameGroupBy.apply operated on the grouping columns. This behavior is deprecated, and in a future version of pandas the grouping columns will be excluded from the operation. Either pass `include_groups=False` to exclude the groupings or explicitly select the grouping columns after groupby to silence this warning.
  df_summary.groupby(by).apply(lambda x: x.drop(by, axis=1).reset_index(drop=True))

					alias	submetric	value
name	objective	min	max
Categorical Consistency	max	0	1.0	0	cat_consis	within_ratio	1.000000
Categorical Statistics	max	0	1.0	0	cat_stats	support_coverage	1.000000
				1	cat_stats	frequency_coverage	0.969359
Classification	min	0	1.0	0	classif	diff_real_synth	0.002514
Continuous Consistency	max	0	1.0	0	cont_consis	within_ratio	1.000000
Continuous Statistics	min	0	inf	0	cont_stats	median_l1_distance	0.012346
				1	cont_stats	median_l1_distance_train_test_ref	0.061728
				2	cont_stats	iqr_l1_distance	0.006173
				3	cont_stats	iqr_l1_distance_train_test_ref	0.089506
Cross Classification	min	0	1.0	0	cross_classif	diff_real_synth	0.005530
Cross Regression	min	0	inf	0	cross_reg	diff_real_synth	0.096424
Distinguishability	min	0	1.0	0	dist	propensity_mse	0.086536
				1	dist	prediction_mse	0.046284
				2	dist	prediction_auc_rescaled	0.070123
FScore	min	0	inf	0	fscore	diff_f_score	0.279271
Feature Importance	min	0	inf	0	feature_imp	diff_permutation_importance	0.007162
Hellinger Categorical Univariate Distance	min	0	1.0	0	hell_cat_univ_dist	hellinger_distance	0.021669
				1	hell_cat_univ_dist	hellinger_distance_train_test_ref	0.036442
Hellinger Continuous Univariate Distance	min	0	1.0	0	hell_cont_univ_dist	hellinger_distance	0.025316
				1	hell_cont_univ_dist	hellinger_distance_train_test_ref	0.070280
KL Divergence Categorical Univariate Distance	min	0	inf	0	kl_div_cat_univ_dist	kl_divergence	0.001878
				1	kl_div_cat_univ_dist	kl_divergence_train_test_ref	0.005298
KL Divergence Continuous Univariate Distance	min	0	inf	0	kl_div_cont_univ_dist	kl_divergence	0.002963
				1	kl_div_cont_univ_dist	kl_divergence_train_test_ref	0.021825
Pairwise Correlation Difference	min	0	inf	0	pcd	norm	0.560178

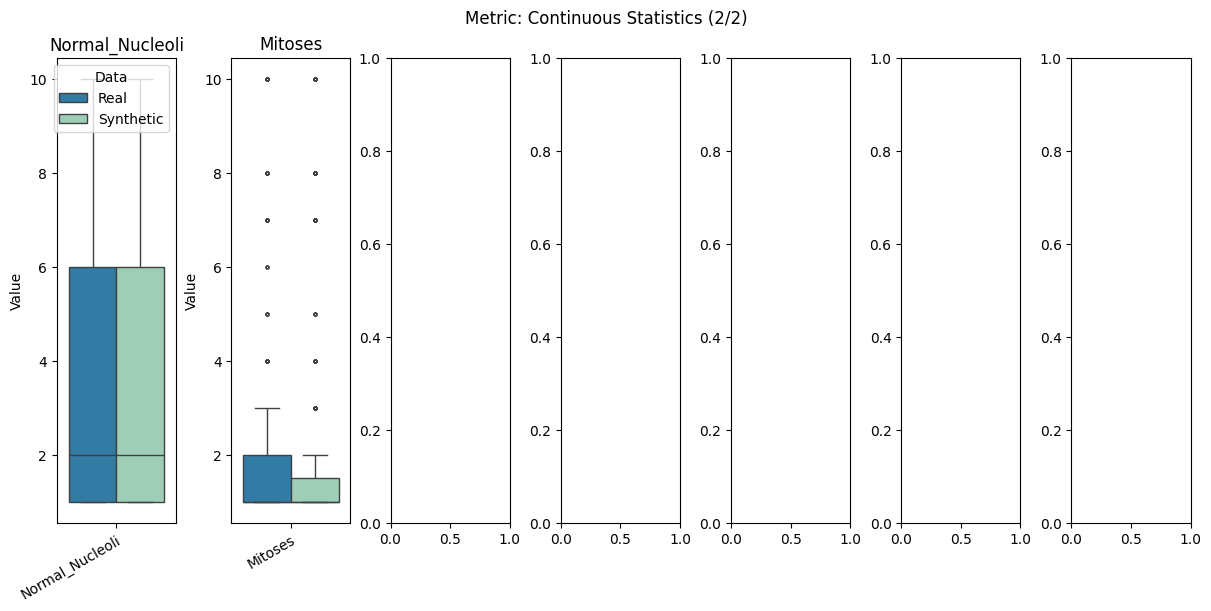

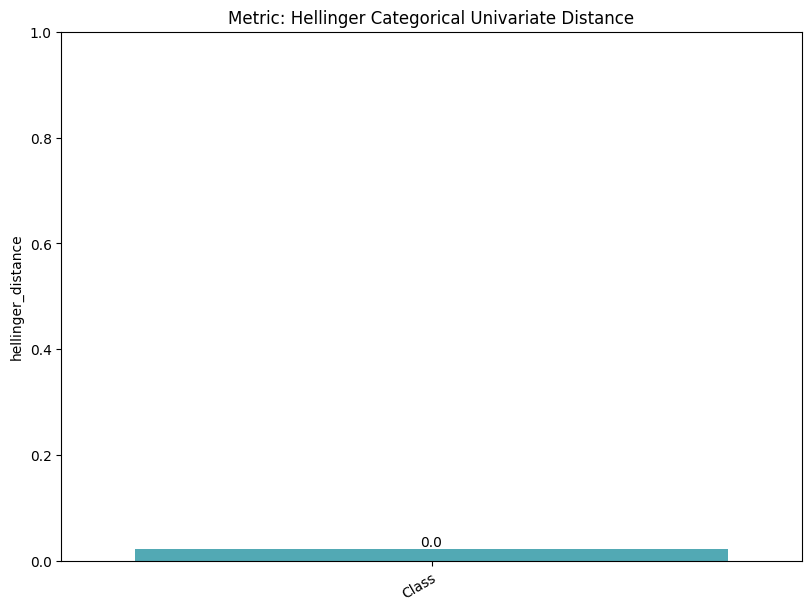

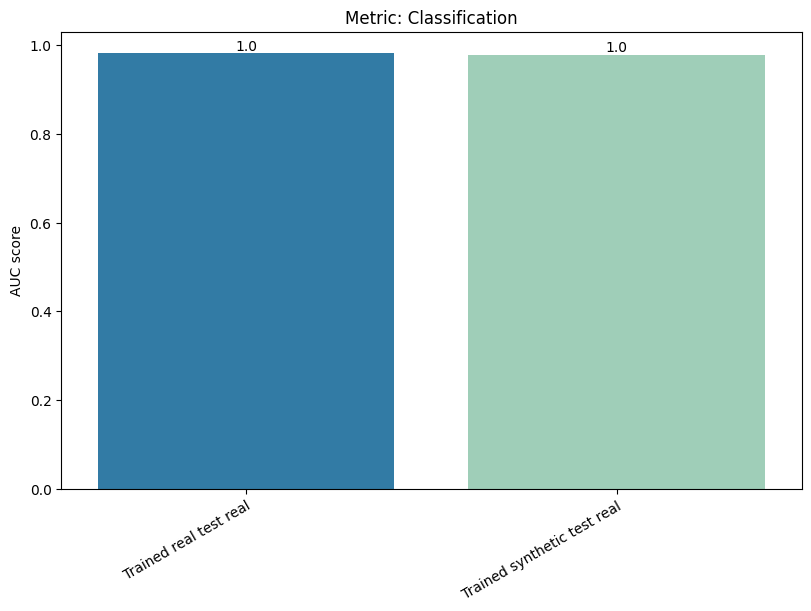

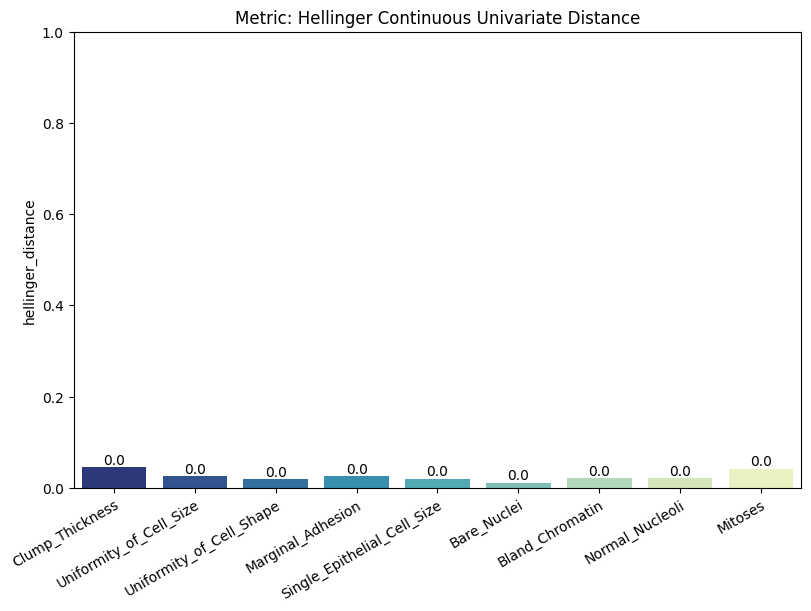

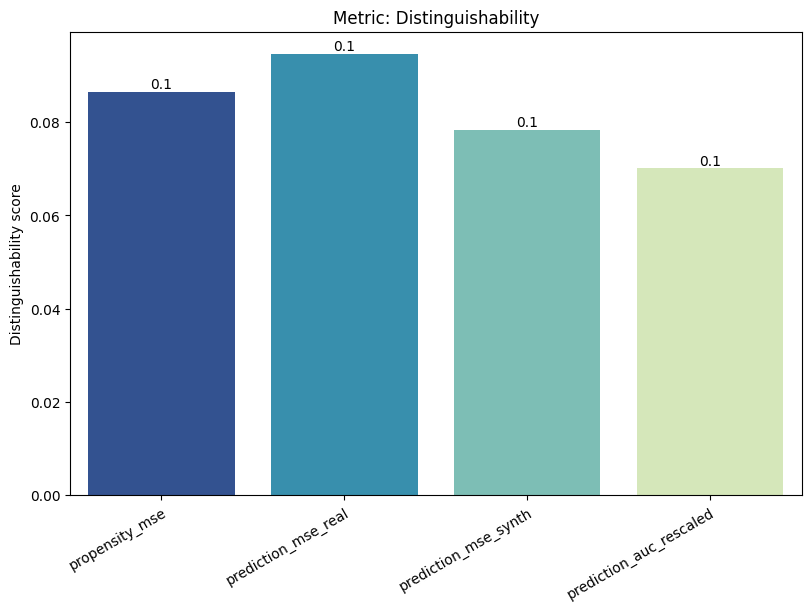

Display the detailed report

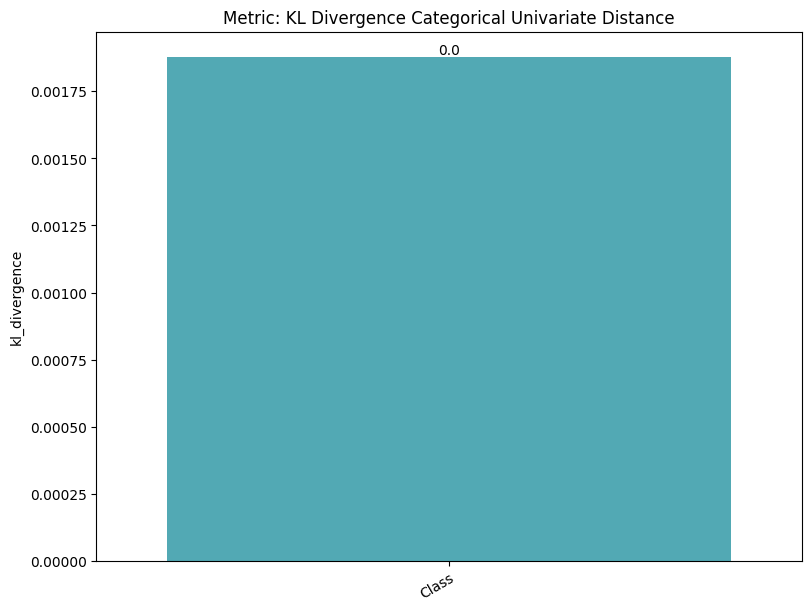

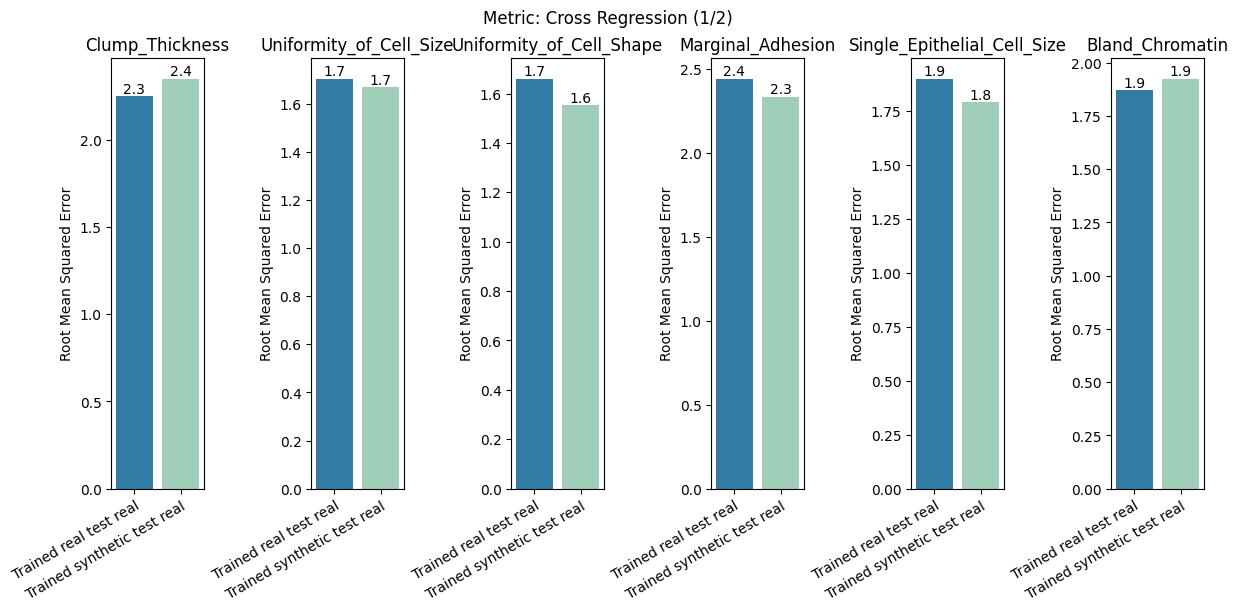

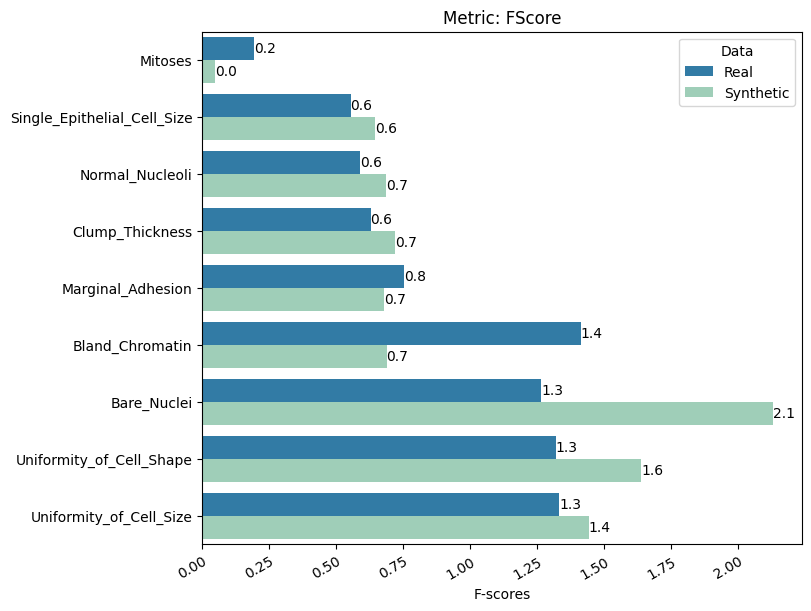

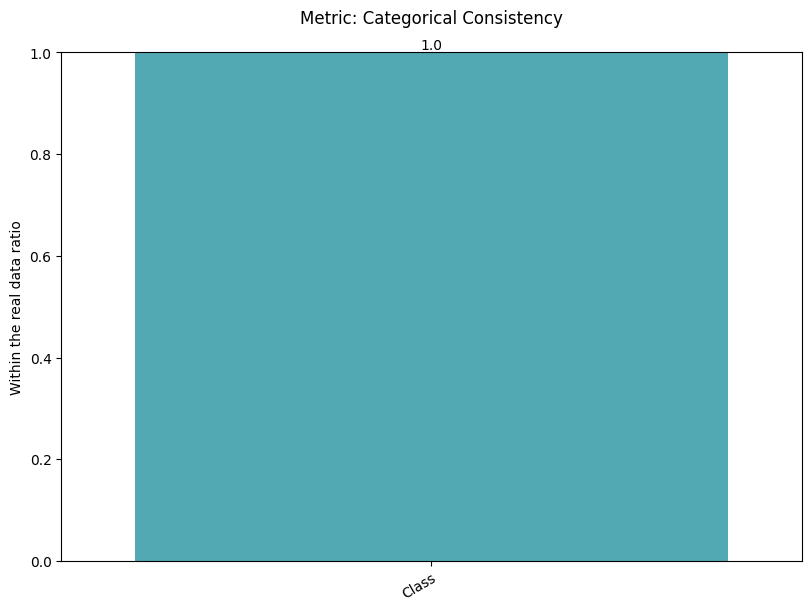

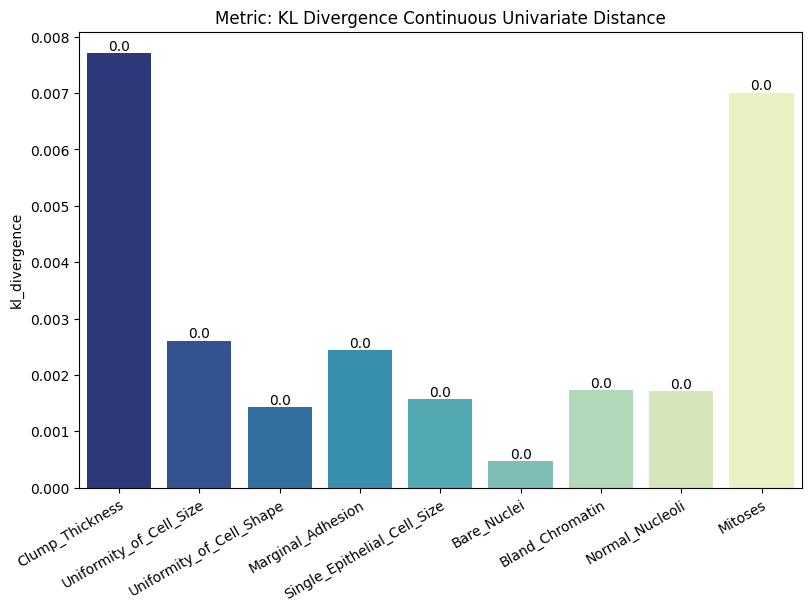

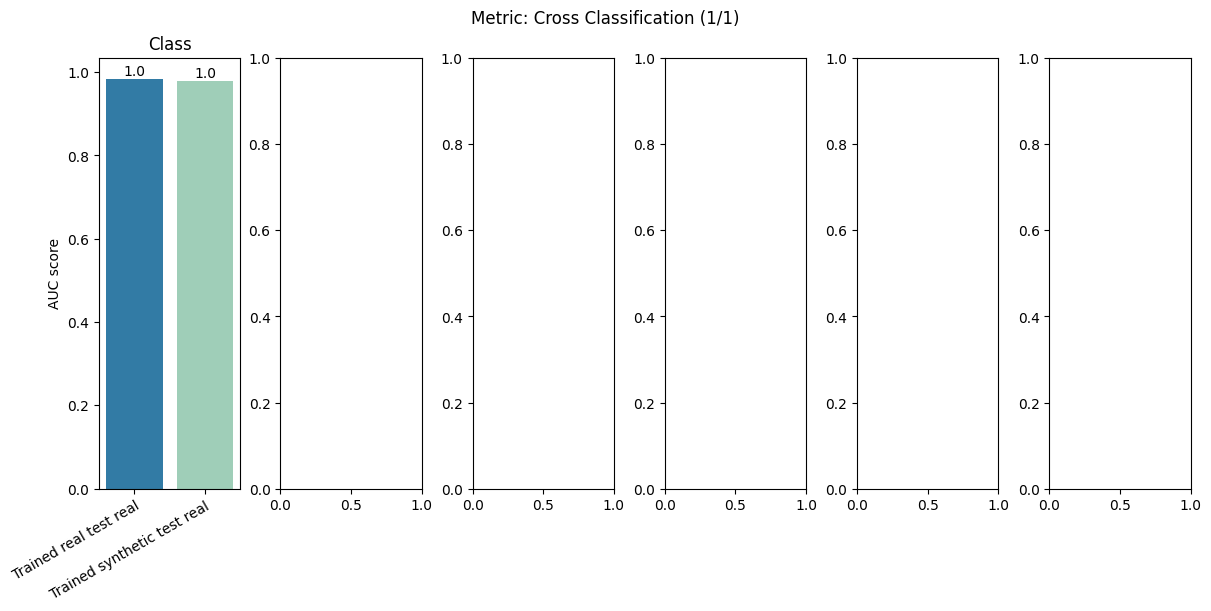

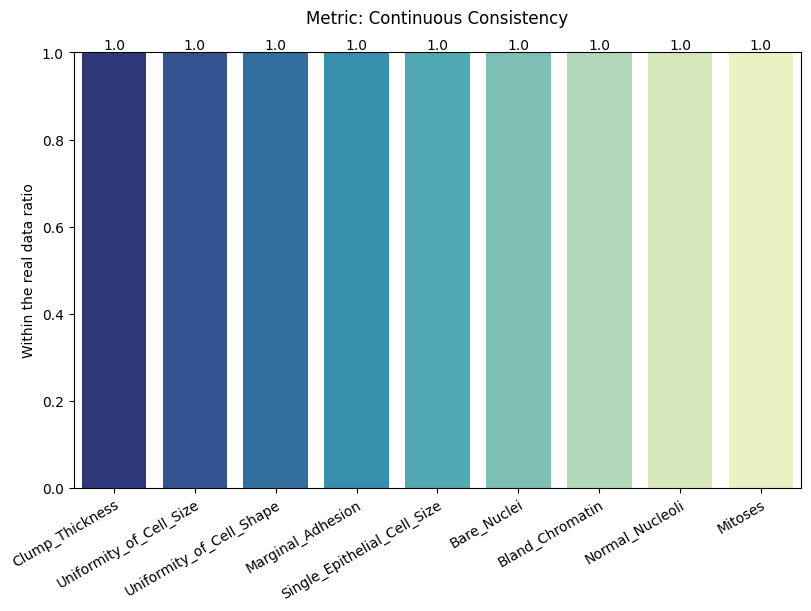

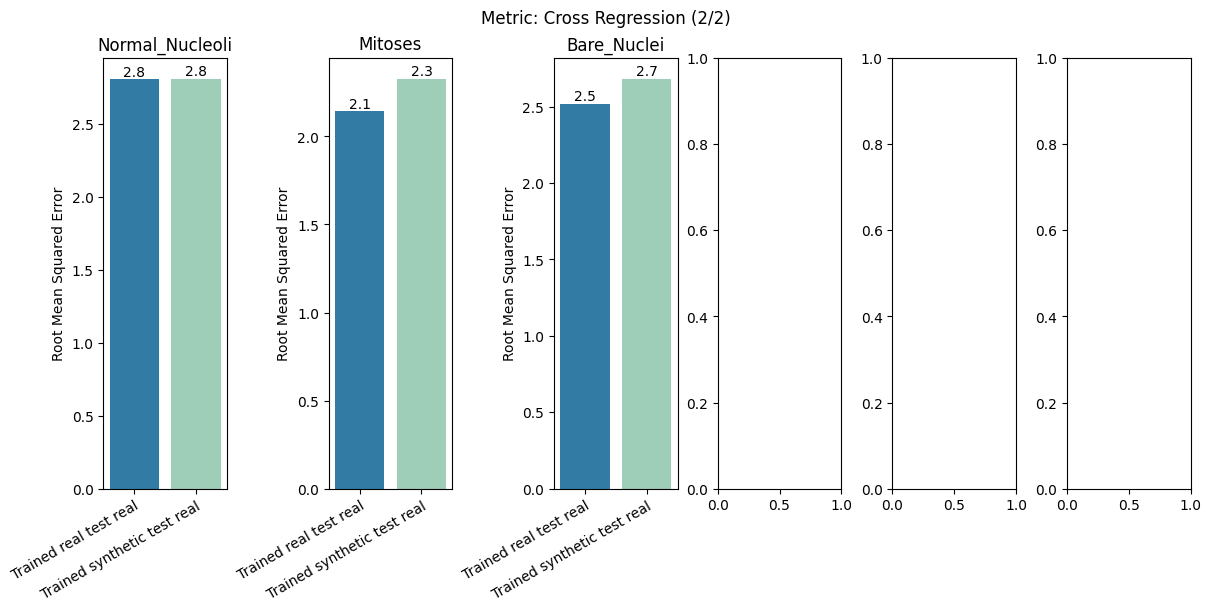

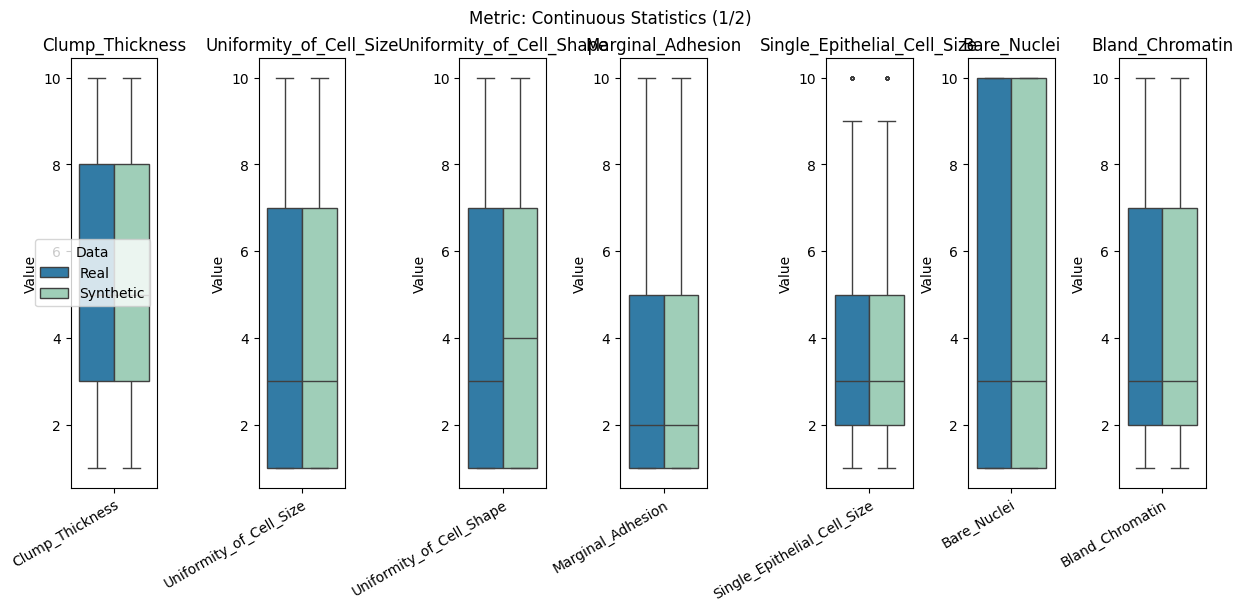

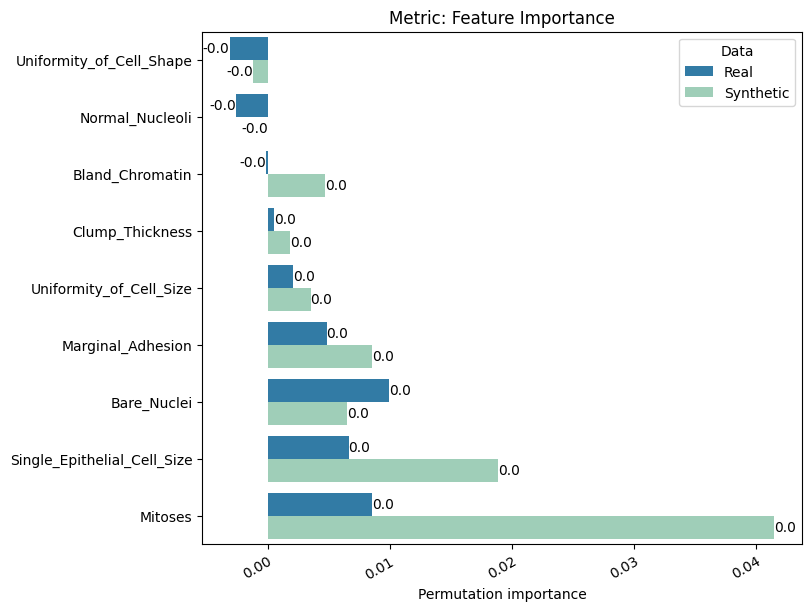

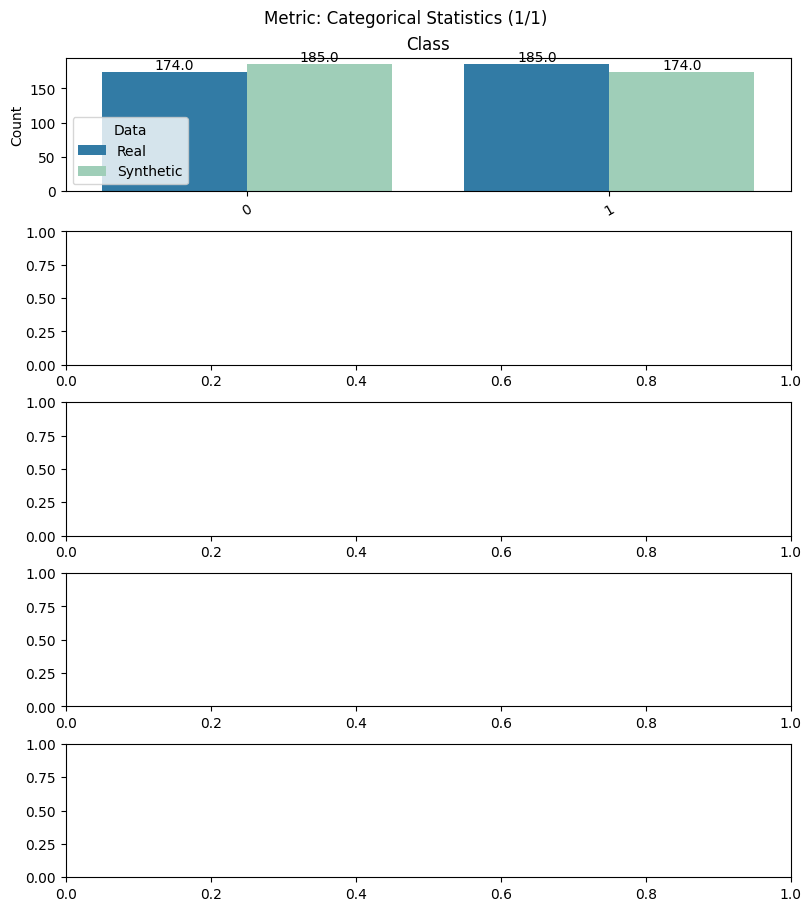

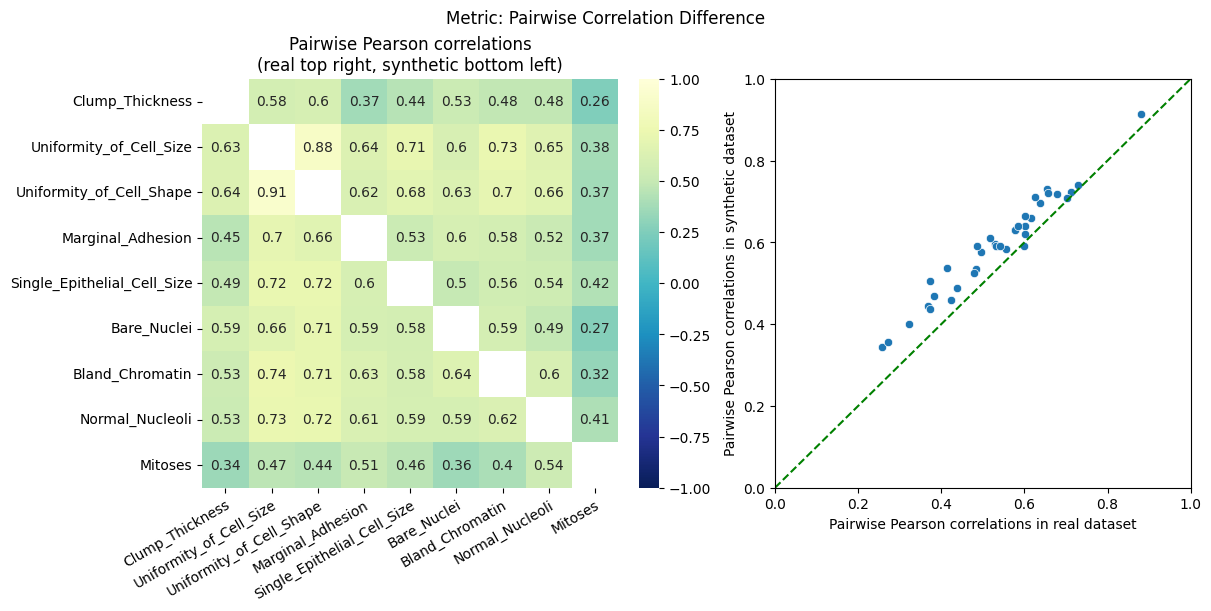

report.detailed(show=True, save_folder=None, figure_format="png")

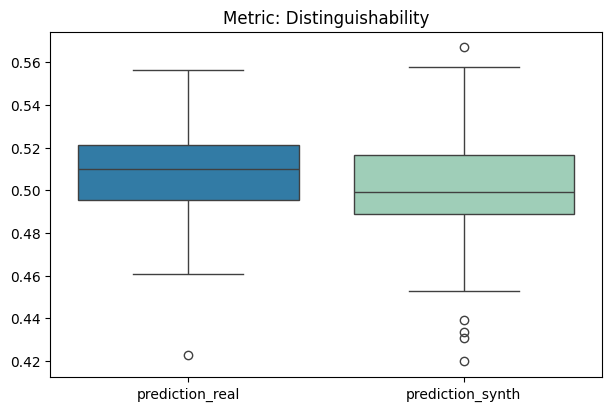

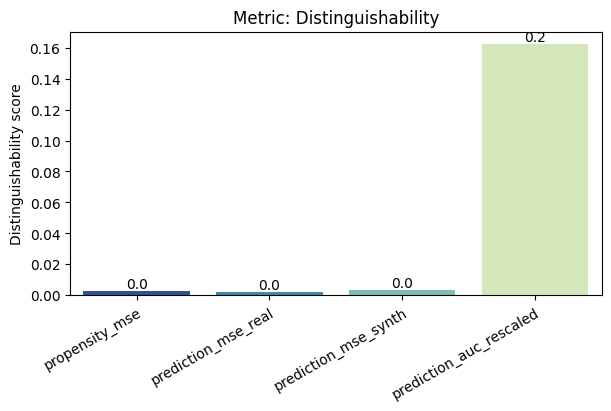

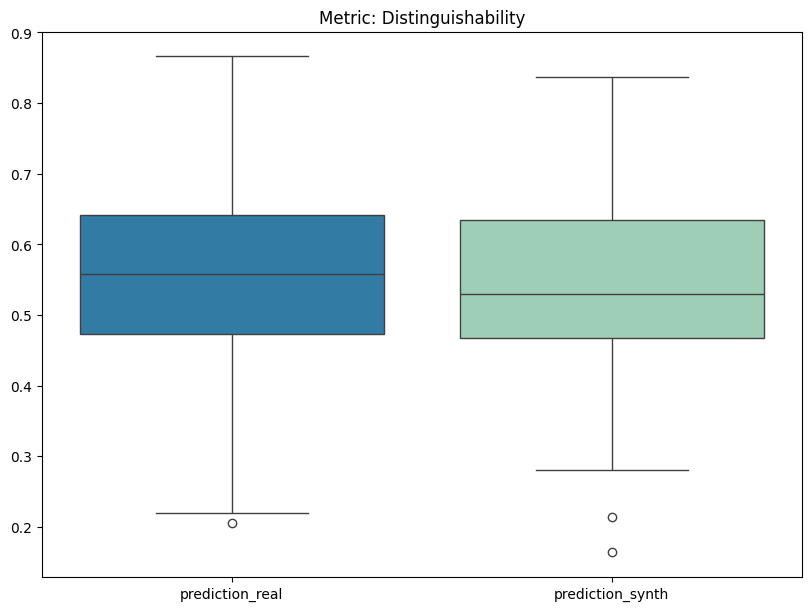

To display only one metric, the draw function can be used.

report.draw(
    metric_name="Distinguishability",
    figsize=(
        6,
        4,
    ),  # Reset here the size of the figure if it was too small in the report
    show=True,
    save_folder=None,
    figure_format="png",
)

Save and load the report

with tempfile.TemporaryDirectory() as temp_dir:
    report.save(savepath=temp_dir, filename="utility_report")  # save
    new_report = UtilityReport(
        report_filepath=Path(temp_dir) / "utility_report.pkl"
    )  # load

2. Second option: Create and compute the report for a subset of metrics only

Here only compute the Distinguishability metric

report = UtilityReport(
    dataset_name="Wisconsin Breast Cancer Dataset",
    df_real=df_real,
    df_synthetic=df_synth,
    metadata=metadata,
    metrics=["Distinguishability"],  # the subset of metrics to compute
    num_repeat=2,
    num_kfolds=3,
    num_optuna_trials=20,
    use_gpu=True,  # if a GPU is available, it will accelerate the computation
    alpha=0.05,
)

report.compute()

report.summary()

	name	alias	submetric	value	objective	min	max
0	Distinguishability	dist	propensity_mse	0.002773	min	0	1.0
1	Distinguishability	dist	prediction_mse	0.001353	min	0	1.0
2	Distinguishability	dist	prediction_auc_rescaled	0.000000	min	0	1.0

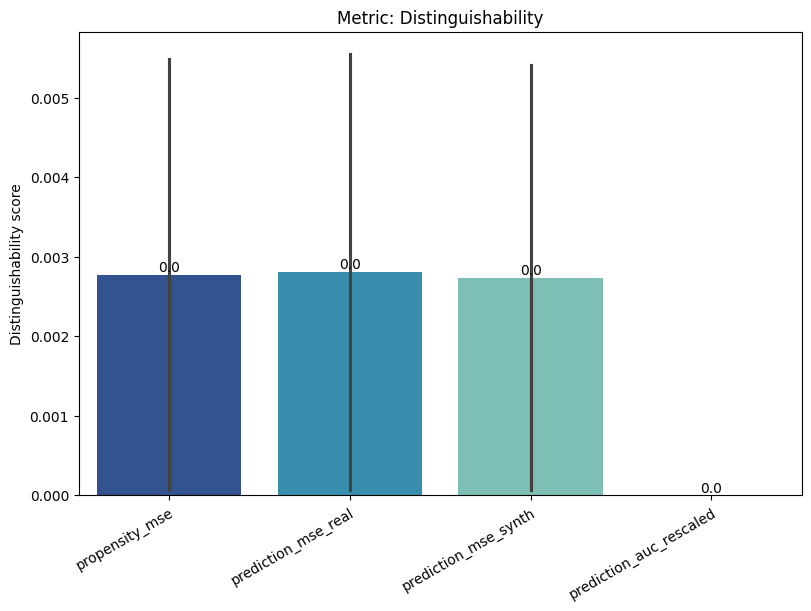

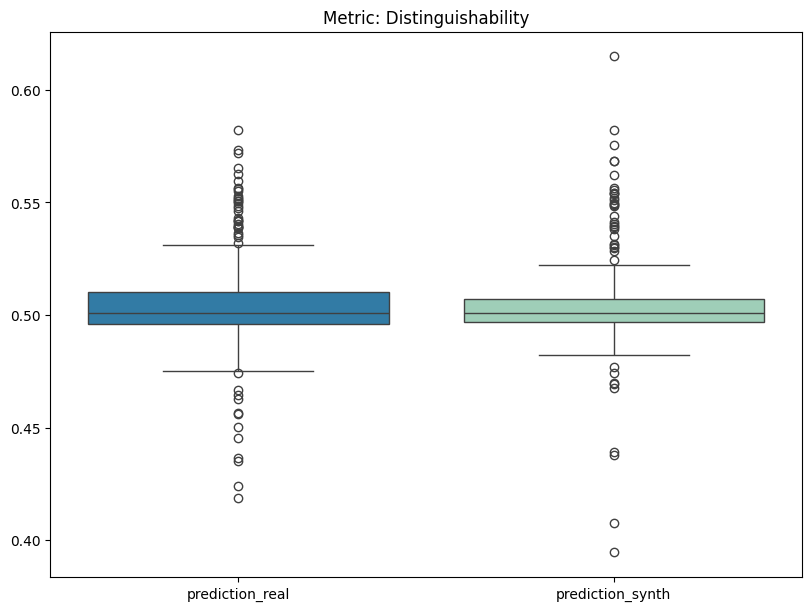

report.detailed(show=True, save_folder=None, figure_format="png")
